Kangvape SuperheroTC 200W genuine host high power steam smoke quit smoking electronic cigarette smart color screen

FOB Reference Price:Get Latest Price
  • 100 - 499 Sets
    US $42.58
  • 500 - 999 Sets
    US $41.00
  • 1000 - 1999 Sets
    US $40.00
  • >=2000 Sets
    US $39.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
kangvape
Model Number:
Super hero TC 200W
Place of Origin:
Guangdong, China (Mainland)
Technology:
Paint
colour:
Black,blue,rainbow,red
weight:
375g(kit)
battery capacity:
External 2 18650 batteries
Output Power:
5-228W
Support atomizer resistance range:
0.2-3 ohm
Five output modes:
Ni, Ti, powerSS, power, bypass mode
Atomizer model:
510 thread
Nebulizer diameter:
26mm
Configuration:
Lite : Main body + packing box
Supply Ability
Supply Ability:
10000 Set/Sets per Day
Packaging & Delivery
Packaging Details
Configuration: Lite: Main body + packing box
Set: * a main body, 1 * Lover 26 nebulizer (0.2ohm) 1 * Alternatively atomizing core, a glass cartridge 1 * 1 * 1 * 1 * data line + the QC card sale card box 1 *
Port
HK
Lead Time :
3-7Days

Kangvape SuperheroTC 228W genuine host high power steam smoke quit smoking electronic cigarette smart color screen

055

Product Description

Superhero TC228W_H550 innovative programs work with United States IC, Japanese chip. Process board technology using the latest gold-plated technology, greatly guarantee the control version of the service life, a record New high-performance micro-controller, the development of intelligent digital temperature control electronic cigarette control panel, the use of TFT color display, ergonomic design, with a good man-machine interface, with Household operation is simple. Control board has a good reverse battery protection, output short circuit protection, board temperature overheating protection and so on more than 10 items of protection. Provide the most safety guarantee Dual lithium battery powered , The maximum output power of 228w, with USB software online upgrade, clock display

Technical Parameter

Superhero TC 200w_H550 technical parameter

Superhero TC 200w_H550

Min

Standard

Max

Output power

5W



228W

Output voltage

0



8V

Output current

0



40A

Atomizer resistance

0.08Ω



3Ω

Battery input voltage

6.2v



8.4V

Battery input current



30A



Bright screen standby current



52mA



Dark screen current

...

...

...

Power off current



105μA



Conversion efficiency

70%

91%

98%

Working temperature

-40°C



+70°C

Charging current



1.5A





Instruction Characteristics:

Working mode

Parameter

Power mode

5w~228w

Power stalls mode

Three choices, power adjustment range 5w-200w ( Stall mode is same to power mode, could be saved the choice)

Temperature control mode

Support Ni,Ti,SS316 temperature control coils

Temperature range: 200F-600F(100°~300°)

TCR mode

In TCR (Different TCR ) mode, users can set the parameters according to the TCR of coil.

The setting of TCR Mode

Following is the TCR value range for your reference

Ni: 600~700; Ti: 300~400; SS316:20~200.

USB upgrade functions

Open the upgrade software on our website, put two batteries into the battery body, find out the upgrade software you want, press UP”“DOWN together and keep some seconds, the display will show the upgrade display, connect the USB cable between mod and computer, wait the upgrade to be finished.

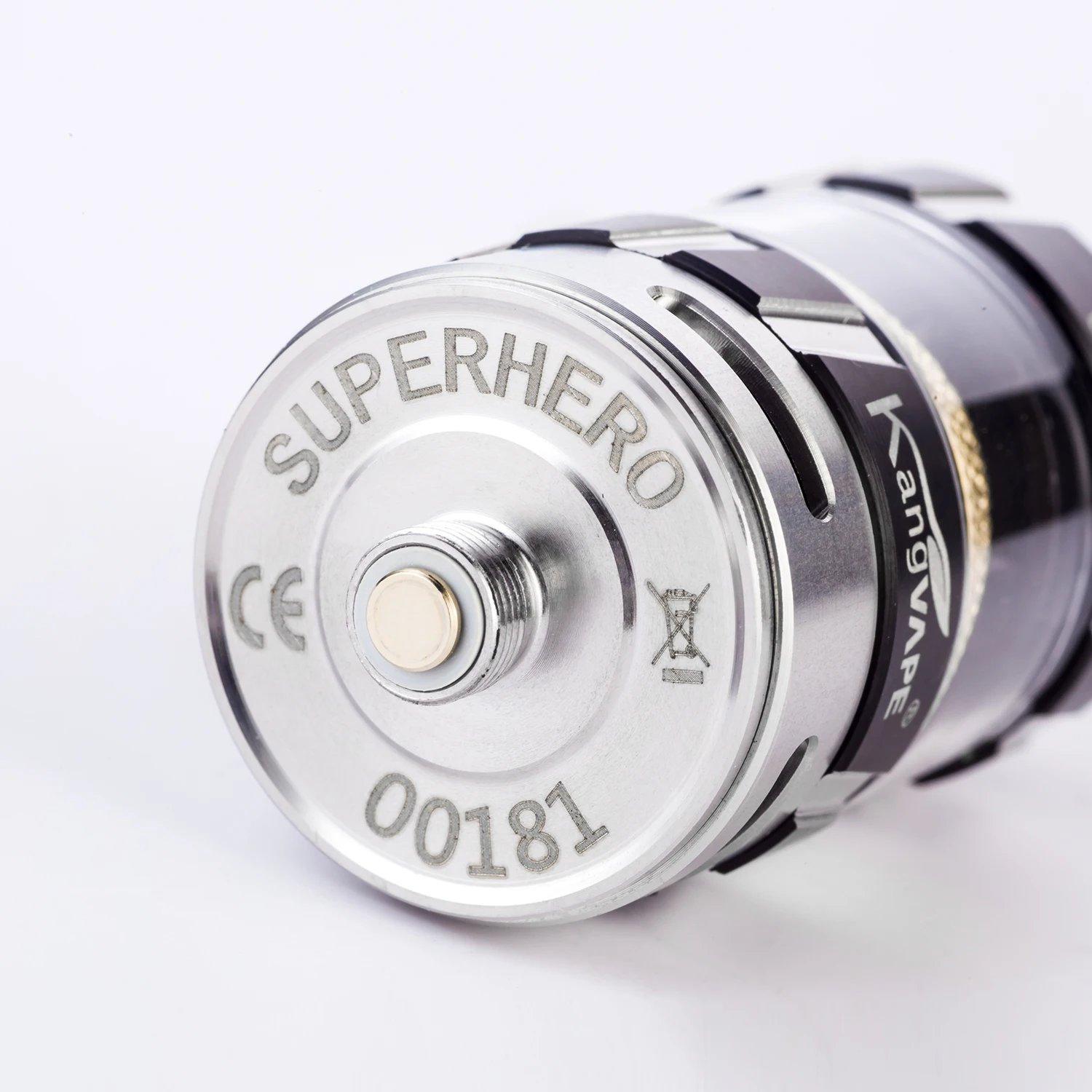

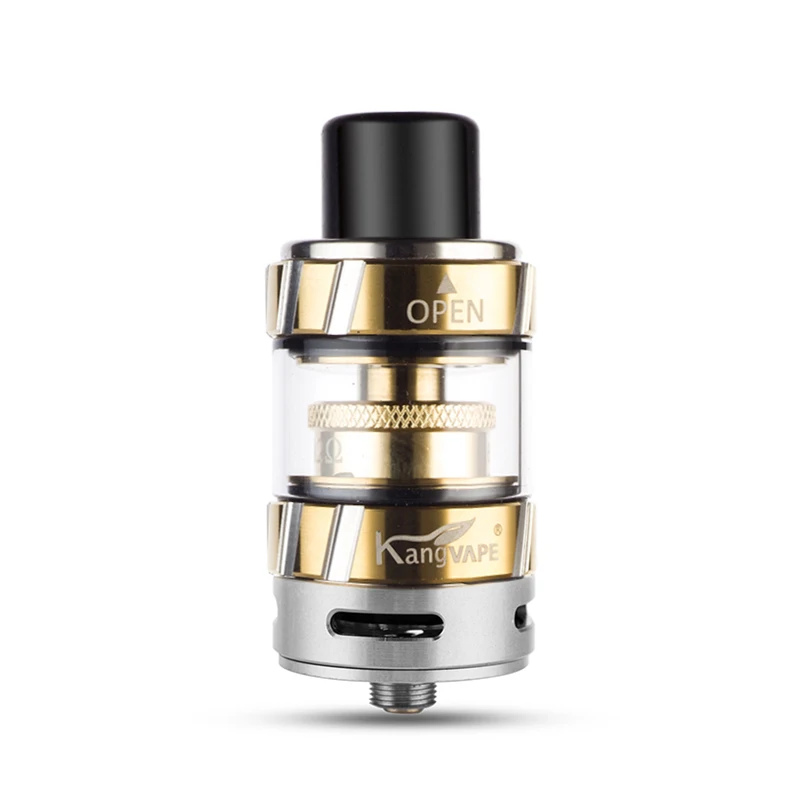

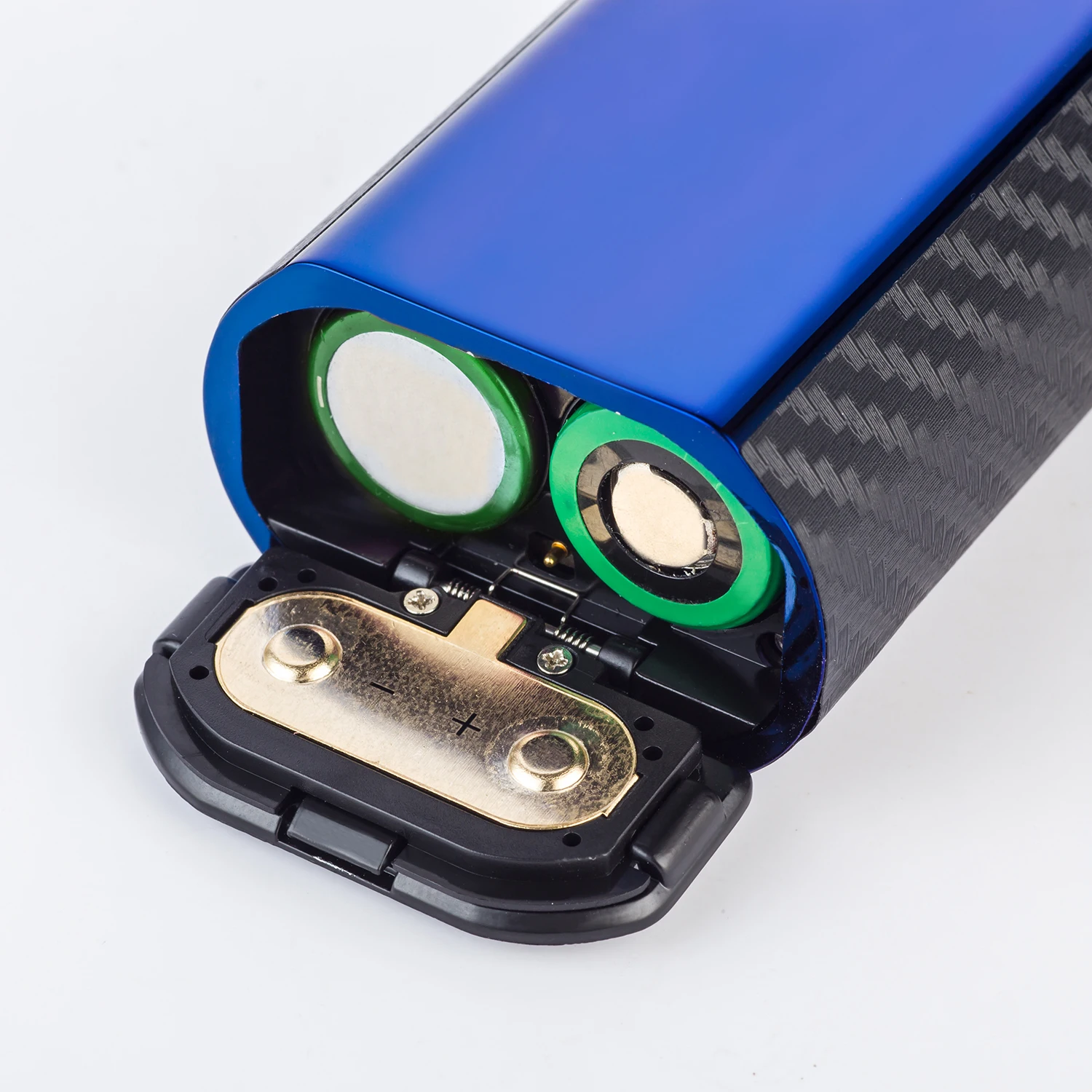

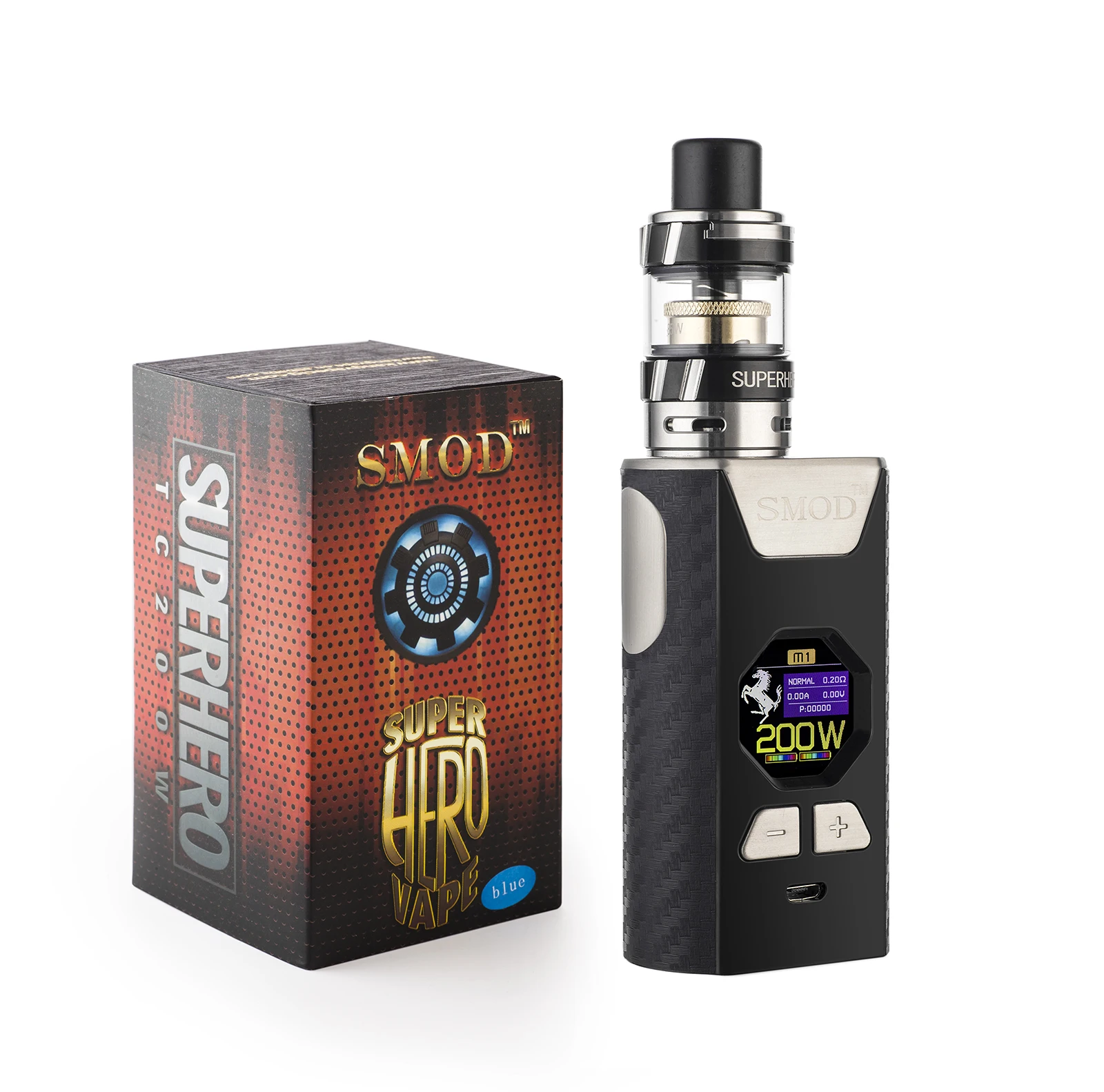

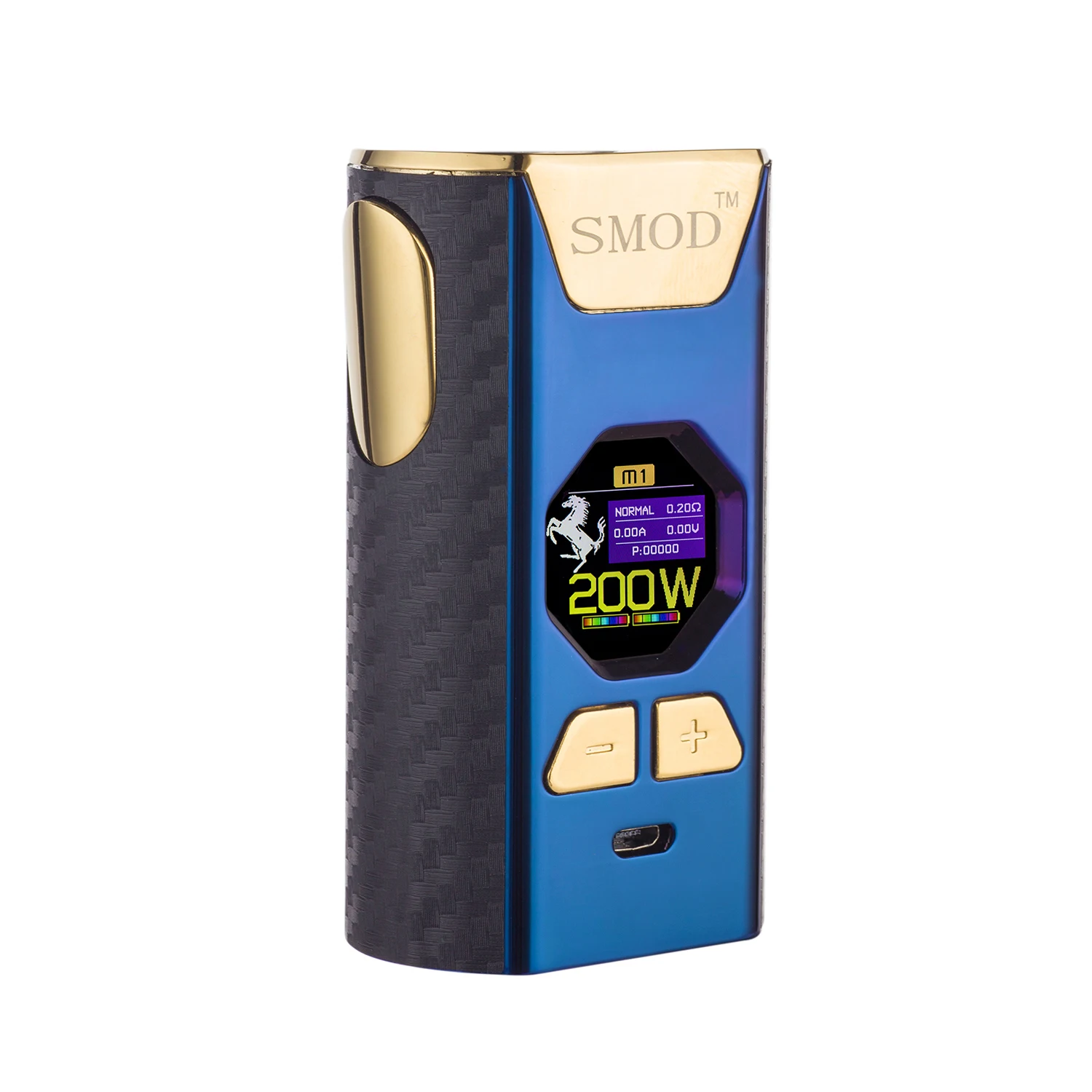

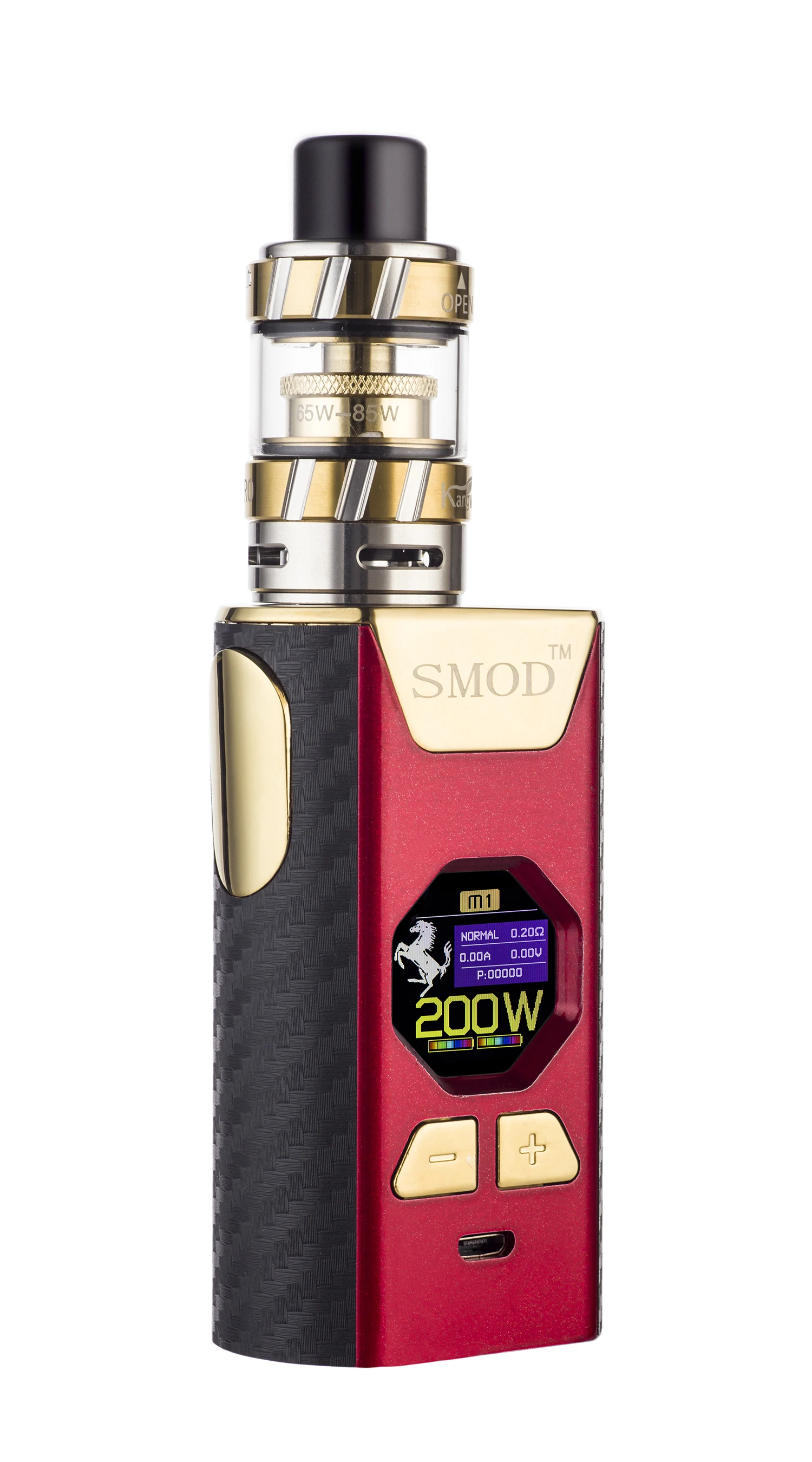

 12.Full kit8.Kit-rainbow2.Mod-red5.Mod-blue11.Battery back cover157.Kit-red20.23.superhero base20.superhero atomizer

22.poster
